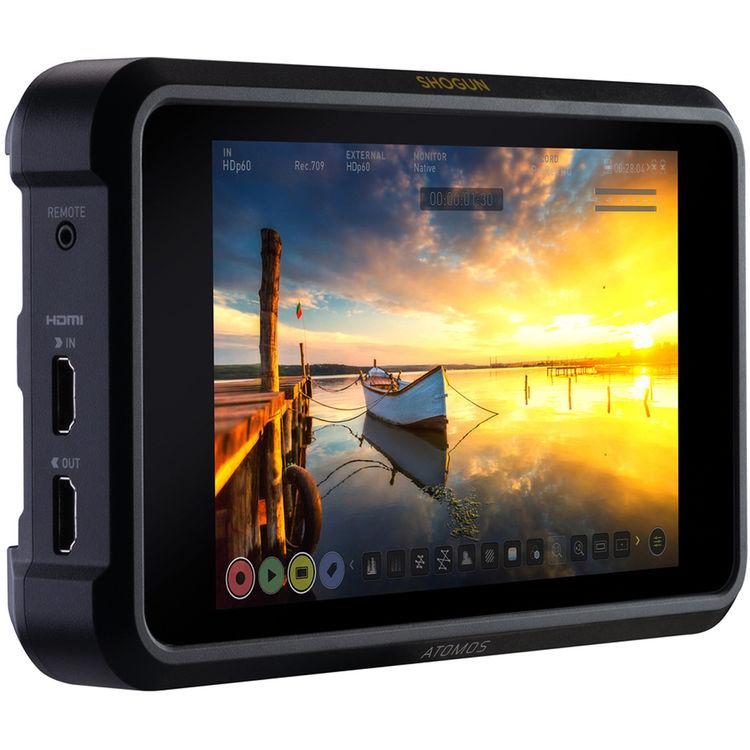

Монітор-рекордер Atomos Shogun 7 HDR Pro Monitor/Recorder/Switcher (ATOMSHG701)

Монітор-рекордер Atomos Shogun 7 HDR Pro Monitor/Recorder/Switcher (ATOMSHG701)

Product Highlights

• 7" 1920 x 1280 Touchscreen Display
• 4-Input HD Switching
• Dynamic AtomHDR, 360-Zone Backlight
• Quad-Link 4 x 3G/6G-SDI, 2 x 12G-SDI
• 4K HDMI Input/Output
• HDR Mode, Dolby Vision Output
• 1500 cd/m2 Brightness
• 1,000,000:1 Dynamic Contrast
• DCI 4K up to 60p / 1080p up to 240 fps
• ProRes Raw / Raw / CinemaDNG / DNxHD

Monitor, record, and switch in the field with the 7", 1920 x 1280 Shogun 7 from Atomos. This versatile pro on-camera recording monitor offers up to DCI 4K raw recording, HDMI and 12/6/3G-SDI inputs/outputs, and ISO recording of up to four HD-SDI camera streams. Output your content for director or client-viewing in Dolby Vision HDR using the Shogun 7, AtomOS10 platform, and a compatible display.

This monitor supports resolutions up to DCI 4K (4096 x 2160) at 60p and up to 2K at 240p for slow-motion effects. Record to 2.5" SSDs using Apple ProRes Raw, ProRes, CinemaDMG (up to 30p), and Avid DNxHD codecs. Record all your подієві s action with live multicamera monitoring, recording, and switching between program and up to four 1080p60 SDI ISO camera streams.

The Shogun 7's 10-bit (8+2 FRC) panel features 360-zone backlight, 1500 cd/m2 brightness, and a 1,000,000:1 contrast ratio. Its native AtomHDR (log) display enables you to more accurately monitor your log gamma footage without having to view flat, washed out images or use a LUT to compress the dynamic range and color space. Built-in presets accurately translate popular log formats from ARRI, Canon, Fujifilm, JVC, Nikon, Panasonic, RED, and Sony cameras.

Save editing time by tagging your footage on-the-fly and recording directly to Final Cut Pro x, Adobe Premiere, or Avid Media Composer formats (third-party plugins may be required for tagging).

Power the Shogun Inferno with a single Sony L-series battery; dual battery plates support hot swapping, enabling longer uninterrupted runtimes. For audio recording, the monitor supports balanced XLR inputs with +48 phantom power via a separately available audio breakout cable. Additional Shogun 7 features include genlock input, SDI/HDMI cross conversion, and a variety of on-screen exposure analysis, framing, focus assist, and other display tools.

• 1920 x 1280 resolution
• 7" LCD screen with 360-zone backlight
• 10-bit (8+2 FRC) monitoring processing
• 1500 cd/m2 brightness
• 1,000,000:1 contrast ratio (zone with backlight on)
• Output using Dolby Vision HDR
• AtomHDR technology displays native HDR (log) display footage
• Log gamma viewing presets for ARRI, Canon, Fujifilm, JVC, Nikon, Panasonic, RED, and Sony cameras
• Custom 3D LUT support (.cube format)
• Anamorphic de-squeeze: 2x, 1.5 x, 1.33 x
• UHD 4K downscale HD for monitoring

• 4K HDMI and 12G-SDI inputs/outputs
• Four 6G/3G-SDI or dual 12G-SDI inputs
• SDI/HDMI cross conversion
• Genlock input
• Separately available audio breakout cable for XLR audio input

• Up to DCI 4K60 recording in ProRes Raw, ProRes, CinemaDMG (4K30), or DNxHD
• Capture and switch between up to four ISO camera feeds
• Slow-motion recording up to 1080p at 240 fps
• Record to 2.5" SSD/HDD media using the included Master Caddy II
• Pre-roll record (8 seconds in HD, 2 seconds in 4K)
• Ten metadata fields

• Dual Sony L-series battery slots support hot swapping for continuous power
• Record 4K30p up to 2.2 hours with 2 x 7.4 V, 7800mAh batteries
• Record 4K30p up to 1.5 hours with 2 x 7.4 V, 5200mAh batteries
• Top and bottom 1/4"-20 mounting threads
• 3.5 mm headphone output port
•

Atomos Shogun 7 Specs
