EAN

6949773302505

Specs

Screen Size: 4.3 "(diagonal)

Pixels: 1280 (H) x 3 (RGB) x 720 (V)

Viewing Angel: 170°

Display Area: 93.6 mm (H) x 58.2 mm (V)

Aspect Ratio: 16:9/4:3

Selectable Color Depth.:24-bit (16,777,216 colors)

Brightness: 420 cd/m2

Contrast Ratio: 900:1

Compatible Input Formats: NTSC/PAL

HDMI Input/Output: HDMI (type A)

SDI Input/Output: BNC Female (8Ω)

Acceptable Signal Types:

ITU-R BT.656:576i(50)

SMPTE-125М:480i(59.94)

SMPTE-274M:1080i(60/59.94/50),1080p (30/29.97/25/24/24sF/23.98/23.98 sF)

SMPTE-296M:720p (60/59.94/50)

SMPTE-425M

A/B:1080i(60/59.94/50),1080p(60/59.94/50/30/29.97/25/24/23.98/30sF/29.97 sF/25sF/24sF/23.98 sF)

TALLY: Mini XLR

Operating Voltage: 6-18 V

DC Power: Max 6.2 W

Operating Temperature: 0°C до 40°C (32°F to 104°F)

Storage Temperature: -20°C до 60°C (-4°F to 140°F)

Package Contents

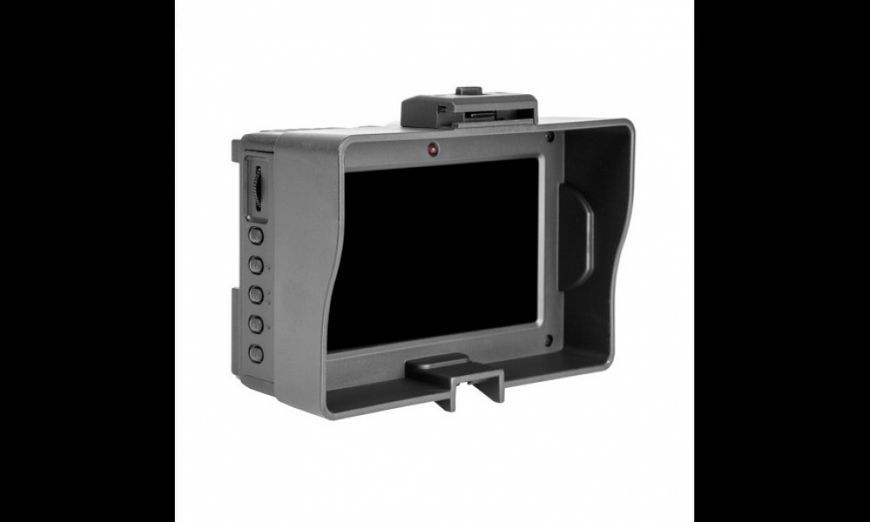

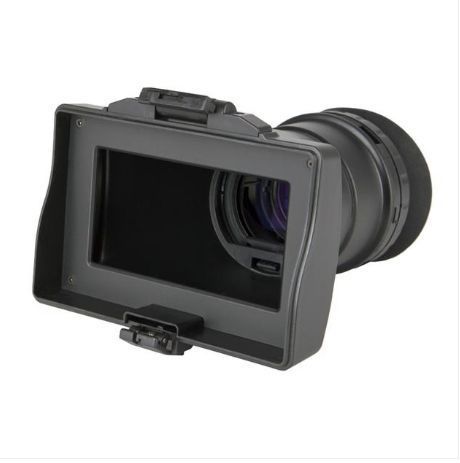

(1) x SpectraHD 4 EVF Kit / EVF: 4.3" Monitor + Loupe

(1) x Regular BNC to Right Angle BNC Cable

(1) x D-tap to Mini-XLR Cable

(1) x Regular HDMI Right Angle Mini-HDMI

(1) x USB to mini USB (Software Update Cable)3

(1) x Junior Joint
